Descripción

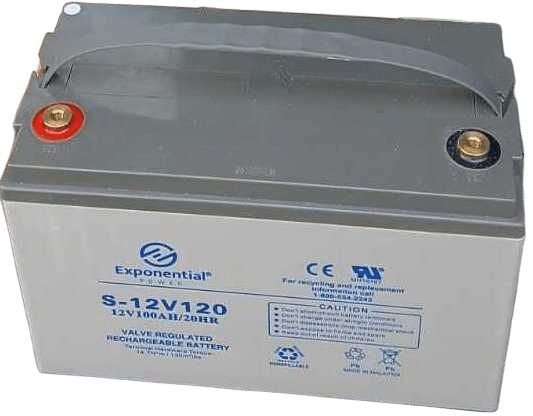

BATERIA PARA POWER BANK S-Series (AGM) VRLA Batteries 12V 100Ah 30 – 225Ah (6 & 12 Volt Blocks)
S Series: General Purpose Batteries
12.99LX6.81WX8.66H, M8) 17W-33L-21H-CM
AGM VRLA Batteries 30 – 225Ah (6 & 12 Volt Blocks)
The sealed construction of the S-Series battery allows trouble-free, safe operation in any position. There is no need to add electrolyte since gases generated during charging are recombined in a unique “Oxygen Cycle.” The S-Series is a premier, general duty sealed lead-acid battery using absorbent glass mat (AGM) technology to suspend electrolyte in a leak-proof, maintenance-free design.
- Maintenance-free operation
- Low self discharge (long shelf life)
- Spill-proof construction
- Wide operating temperature
- 100% memory-free
- Non-restricted for air transportation
- UL Listed – UL file no. MH19767
- Design life of 5 – 10 years in float service
Aplications
- Utility (switchgear)
- Telecom
- UPS systems
- Emergency lighting
- Alarm systems
- Home Generators
| Part No.* | 8 Hr Ah Rate | 20 Hr. Ah Rate | L x W x H (in.) | I.R. (mOhms) |
| S-6V195 | 143 | 156 | 10.02 x 7.09 x 9.96 | 3.0 |
| S-8V195 | 162 | 200 | 10.24 x 7.17 x 11.7 | 1.9 |
| S-12120 | 11 | 12 | 5.95 x 3.86 x 3.98 | 3.0 |
| S-12260 | 24 | 26 | 6.54 x 6.93 x 4.92 | 14 |
| S-12400 | 37 | 41 | 7.76 x 6.50 x 6.69 | 10 |
| S-12750 | 74 | 80 | 7.76 x 6.50 x 6.69 | 10 |
| S-12V120 | 100 | 107 | 12.99 x 6.81 x 8.66 | 4.9 |
| Plates | Lead-tin-calcium alloy |
| Separator | Microporous glass fiber (AGM) |
| Case Material | ABS |
| Float Voltage | 2.25 V/cell |
| Equalize Voltage | 2.35 V/cell |
| Temp. Range | 5° to 130° F (68° to 77° F recommended) |
| Plates | Lead-tin-calcium alloy |
| Separator | Microporous glass fiber (AGM) |
| Case Material | ABS |
| Float Voltage | 2.25 V/cell |
